Modular ordering for busy restaurants

Orders, menu edits and plugin-driven options remain responsive with offline-friendly caching and real-time updates.

Runtime plugins, multi-platform delivery and operational tooling keep the system adaptable.

• Plugin system: load extensions at runtime to add capabilities without redeploying the server. Contracts keep plugins interoperable.
• Cross-platform client: the Flutter client ships to Android, iOS and web for a consistent guest and staff experience everywhere.
• Menu and order management: versioned menus, multi-section products and live order editing keep staff productive during service.

Caching, self-hosting and guardrails keep service smooth when the restaurant is busiest.

• Client caching for historic menu versions.
• Built-in image management and caching.
• Self-hosted by design, no internet required.
• Clean architecture and interface-driven contracts.
• Customizable orders page and dashboards.
• Statistics and insights for managers.
• Extensible authentication and permissions.
• Entity structure validated by Glovo.

Server and client mirror the same modular principles for easier evolution.

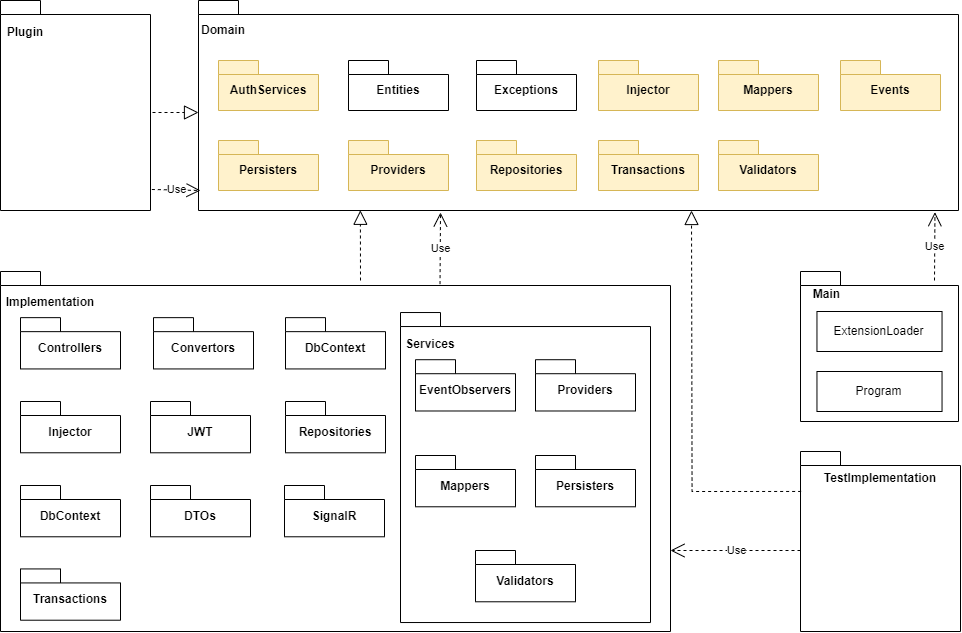

ASP.NET Core server

Controllers, services and repositories are clearly separated and wired through interfaces.

Domain hosts contracts for repositories, services, entities, events and transactions. Plugins depend only on these interfaces.

Implementation covers persistence, controllers, authentication, real-time comms and notifications.

TestImplementation keeps unit coverage focused. Main hosts plugin loading and startup.

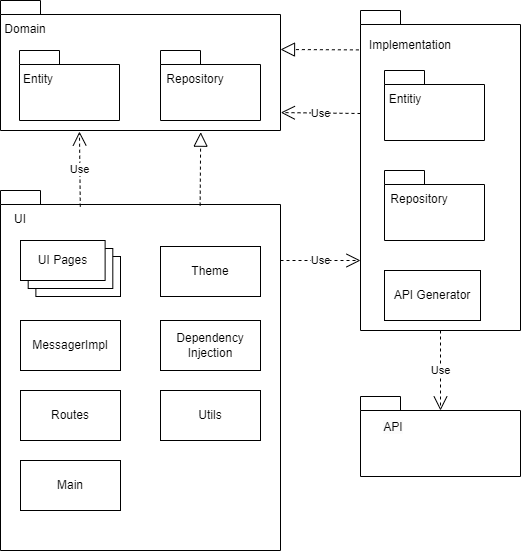

Flutter client

Domain defines entities, repositories and messaging contracts in pure Dart.

Implementation contains generated OpenAPI clients plus concrete repos and services.

UI hosts all Flutter widgets, dependency injection framework glue and blocks that connect UI to logic.

Server-driven UI components - simply implement the required interfaces in plugins and the UI will adapt.

Clean architecture with clear boundaries keeps the client adaptable and maintainable as features evolve.

State management driven by Cubit/BLoC pattern for predictable, testable UI behavior.

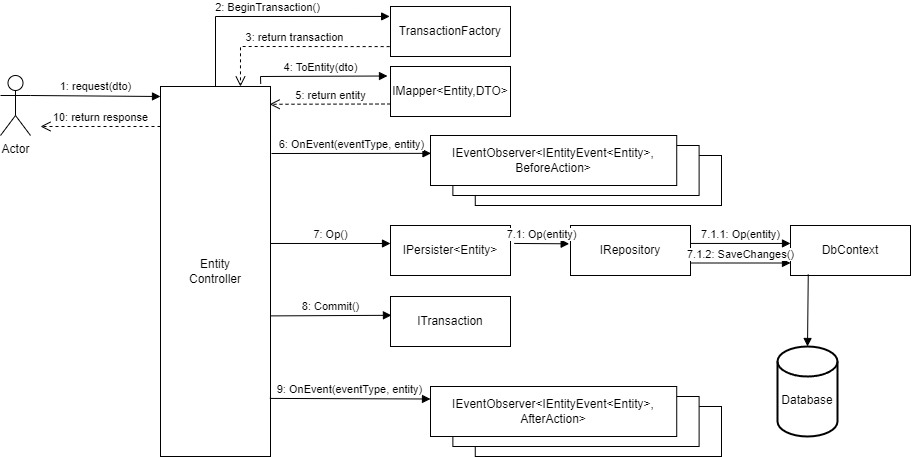

Each layer stays small and swappable, keeping plugins first-class citizens.

• Controllers: HTTP endpoints lean on a generic controller pattern for reuse and consistency.
• AuthService: handles authentication and authorization, keeping data safe across roles.
• Transaction factory: a database transaction wrapper ensures consistency with a clean abstraction.

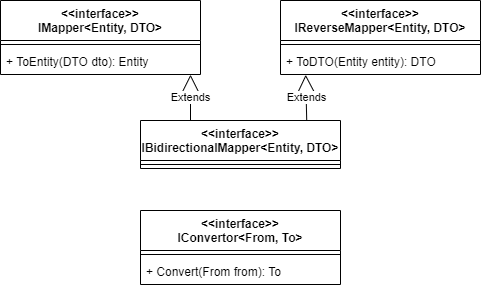

• Mapper: generic mappers convert between entities and DTOs, reusing definitions across modules.

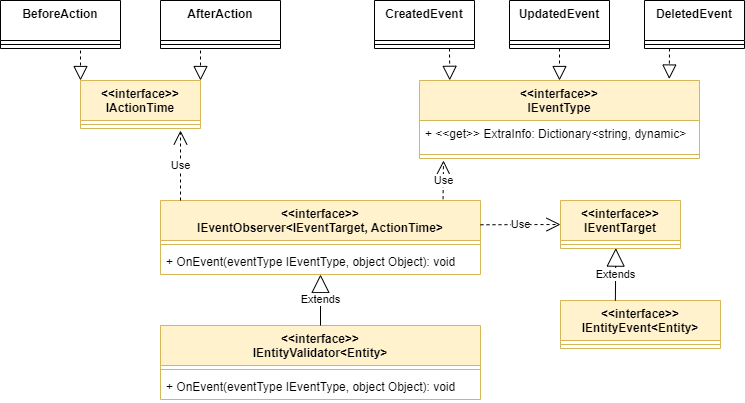

• Event observers: before/after hooks that validators and notifiers implement; plugins can add new observers.

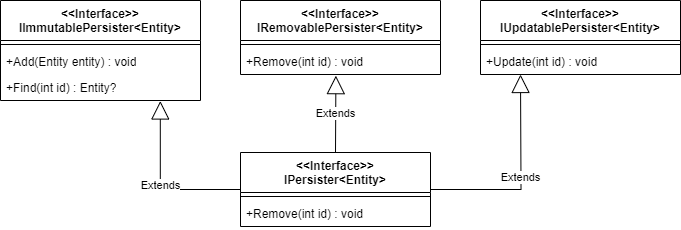

• Persisters: generic CRUD services that abstract data access for controllers and other services.
• Repositories: an EF Core-based data layer responsible for querying and persistence.

DLL-based plugins register services through a simple injector contract so new capabilities ship independently.

Loading plugins

The server scans a plugin directory, loads DLLs via Assembly and instantiates classes implementing an IInjector interface. Plugins receive the IServiceCollection, registering their own services: mappers, persisters, controllers, event observers and more.

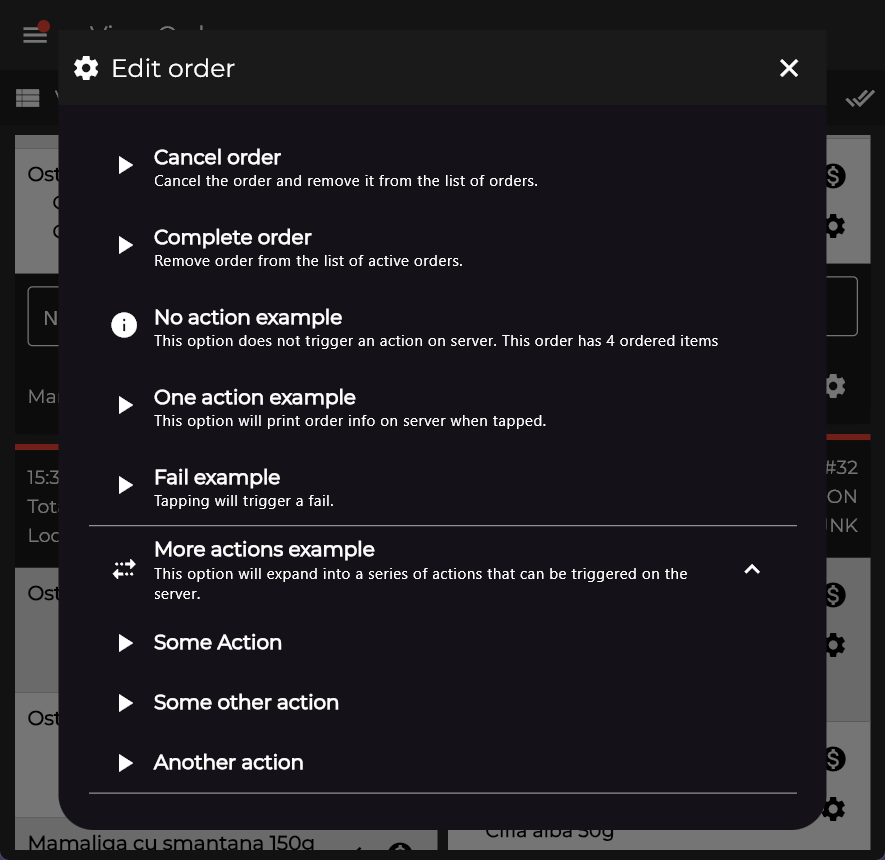

Client-side, modules expose options rendered in the UI; triggering an option calls the server to execute the linked action. That keeps integrations discoverable without bloating the core.

Menu, rooms and orders match how teams operate while staying integration-friendly.

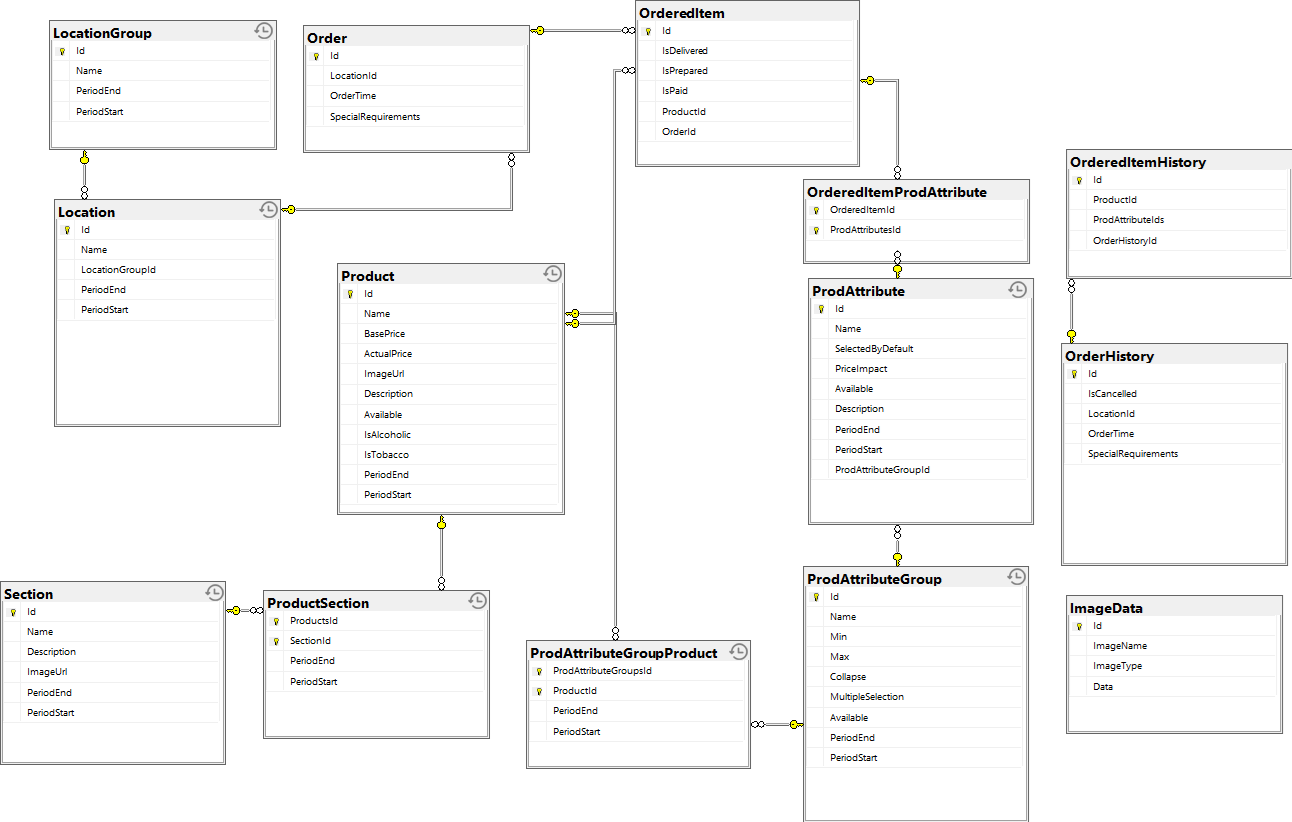

Entities

• Menu primitives: sections, products, attribute groups and attributes mirror delivery-app schemas for smooth integrations.
• Dining topology: location groups and locations model rooms and tables to match on-the-floor operations.
• Orders: active orders keep item status flags; finished orders preserve history including cancellations.
• Temporal tables: menu entities use temporal tables so any past state can be queried precisely.
